Aerodynamic Seals

When reducing drag is a necessity, Aeroseals aerodynamic seals close gaps in airframe surfaces and help control airflow.

By using a combination of materials (including rubber & fabrics) our seals enhance sealing, wear, thermal performance and aerodynamic performance.

We have a wide range of sealing profiles that satisfy aerodynamic requirements and can be used on a variety of locations including the wing, fuselage and tail to eliminate leakage and improve overall aircraft performance.

These seals are also useful for any industry where aerodynamics, wear resistance and thermal performance are key.

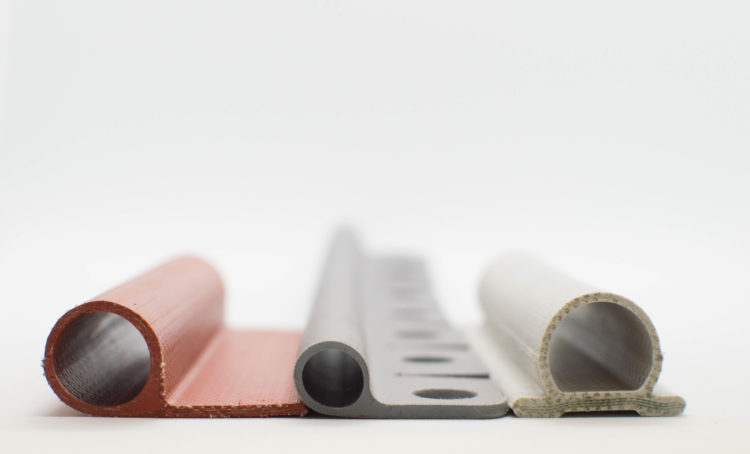

Product Examples

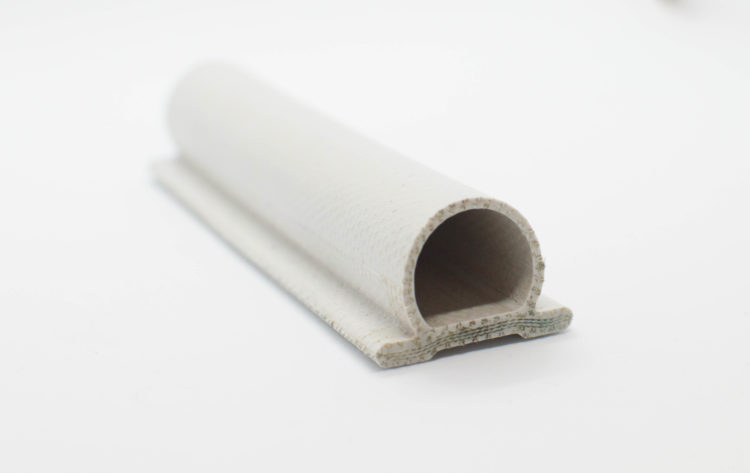

P-Seal
Omega Seal
Blade Seal
Tadpole Seal
Y-Seal
Bespoke Geometry

Product Features

Seals larger gaps and tolerances, and a wide range of gap variance
Easy Installation
Simplified line replacement during maintenance
Seals can be fitted to different curved panels, reducing NRE costs
Low friction finish for use in dynamic applications
High wear resistance, ideal for areas where debris abrasion is an issue

Properties and Technical Information

Extreme Temperature Performance

Performs in a wide range of temperatures, from -148˚F to 617˚F (-100˚C to 325˚C).

Materials

Choose from a wide variety of material options depending on your application, including Silicone, EPDM, FKM, HNBR and PU

Metallic or composite insert

Avoids the need for external reinforcements

High Performance

Combines Aeroseals elastomer formulations with engineered fabrics to create light and high-performance products.
